StealthWave T2000 - MANET-MIMO Radios

Overview

MANET-MIMO Tactical Radios

StealthWave^TM T2000 are MANET radios that deliver superior performance for ground, maritime, and airborne communications.

Operating in L, S, or dual band configurations, two high-power MIMO transmitters are implemented in a lightweight, compact, and waterproof transceiver.

The Transmission Security (TRANSEC) option enables Frequency Hopping Spread Spectrum (FHSS), adding low probability of interception (LPI) and detection (LPD) capabilities.

The Mobile ad hoc network (MANET) technology allows to deploy any network topology without external infrastructure.

StealthWave^TM radios implement unique frequency offset compensation algorithms that keep communication performance at hypersonic speeds.

Specification

StealthWave^TM T2000

Signal
Frequency Range	1150-2600 MHz
Waveform	2×2 MIMO – COFDM
Modulations	QPSK, 16QAM
Channel Bandwidth	L-band: 5, 10, 20, 30 MHz S-band: 10, 20, 30 MHz
Data Rate	2 to 50 Mbps
Max. RF Output Power	2x 4W
Multiple Access	TDMA
Networking	Scalable Mesh, MANET

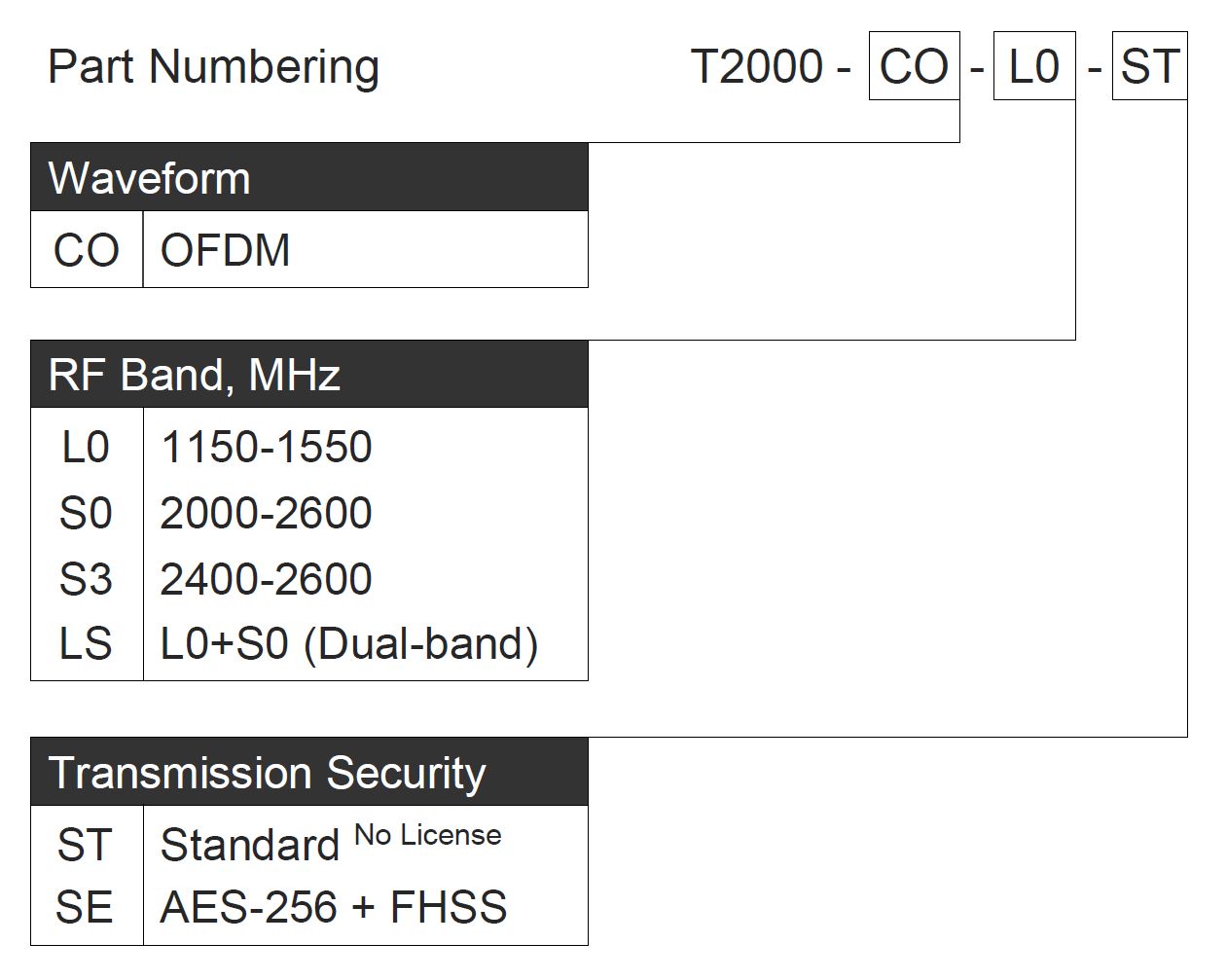

Transmission Security ^-SE
Frequency Hopping ^Option	Up to 50 hops/s
Data Encryption ^Option	AES-256
Interfaces
RF Connectors	2x TNC(f) 50Ω
Ethernet ^{Data & Control} ^{Mighty Mouse Series 800}	10/100/1000BASE-T
Circular Connector ^{2M Series 801}	Power Supply: +12 to +32 VDC Serial: 1x RS232 and 1x RS422
Status Indicator	Tri-colour LED
Current/Power Consumption ^{@28VDC, Max. RF Output (typ.)}	Peak 2.6A^73W Average 1.6A^45W
Mechanical
Dimensions	106.0 x 72.0 x 42.5 mm
Weight	0.45 kg
Material	Aluminium 6082
Finishing	Black Hard Anodized
Environmental
Operating Temperature	-40ºC…+75ºC
Storage Temperature	-55ºC…+85ºC
Waterproofness	IP67
Temperature, Humidity, Vibration, Shock, ESD	MIL-STD-810 RTCA DO-160
EMC	MIL-STD-461
Electrical Power Supply	MIL-STD-704F
Environmental Protection	RoHS, REACH

Key Features

Superior Performance

Two 4W RF MIMO transmitters (8W effective).
Up to 50 Mbps of network capacity.
L-, S-, or dual-band configurations.
Configurable RF within the selected broadband.
Hypersonic Mobility up to Mach 5 (>6000 km/h).
Lighter weight, Hand-held dimensions.
ITAR Free Equipment.

Waveforms

2×2 MIMO Spatial Diversity.
COFDM with selectable channel bandwidth.
True Random FHSS with up to 512 frequencies.

Mesh Networking

Robust Scalable MANET, up to 200+ nodes.
Mesh, Star, and Mixed network topologies.
Internally synchronised, GPS not needed.
Dynamic Packet Routing between nodes beyond Line-of-Sight (LoS).
IP Filtering, Wireless Bridge, IP Multicast, Data Relay.
Quality of Service based on DSCP.
Silent Mode (RX Only).

Transmission Security

Frequency Hopping Spread Spectrum (FHSS).
AES-256 Encryption.
Zeroization of TRANSEC parameters.

Avionics-grade Qualification

Qualified for airborne environmental conditions.
Extremely rugged IP67-rated design.
Black hard anodized aluminium enclosure.
Built-in self-tests (BIST).
Over-temperature monitoring and protection.
Robust power supply: EMI filtering, overcurrent, overvoltage, and reverse voltage protections.

Data Interfaces

A single transceiver for Commanding & Control (C2), telemetry, audio, and video streaming.
Simultaneous connection of multiple devices via Ethernet and serial data interfaces.
